AMEISON manufacturer 4g Outdoor Antenna 1710-2690MHz 3dbi N Male Waterproof FRP Omnidirectional Antenna

Name: AMEISON manufacturer 4g Outdoor Antenna 17102690MHz 3dbi N Male Waterproof FRP Omnidirectional Antenna
Brand: AMEISON
Price: 1 USD

AMEISON manufacturer 4g Outdoor Antenna 1710-2690MHz 3dbi N Male Waterproof FRP Omnidirectional Antenna Manufactures

Brand Name : AMEISON

Model Number : AMXF-1727-3

Certification : ISO 9001: 2008

Place of Origin : China

MOQ : 100

Price : EXW Price

Payment Terms : TT,Paypal,Western Union

Supply Ability : 50,000 Pieces per Month

Delivery Time : 10-20 working days

Packaging Details : PP bag /inner box/master carton or customized

Product name : Omnidirectional Antenna

Frequency : 1710～2690 mhz

Gain : 3dBi

VSWR : ≤1.5

Impedance : 50Ω

Polarization : Vertical

connector type : N male

Dimensions : Φ20*180

color : Gray

Material : Fiberglass

Mounting way : Pole-holding

Contact Now

AMEISON manufacturer 4g Outdoor Antenna 1710-2690MHz 3dbi N Male Waterproof FRP Omnidirectional Antenna

Feature :
Exquisite appearance
Good impact resistance,waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain,low standing wave,strong anti-interference ability

Application :
2.4G/Wifi/Wlan/DCS/3G/LTE/4G system
Point-to-multipoint system

AMEISON manufacturer 4g Outdoor Antenna 1710-2690MHz 3dbi N Male Waterproof FRP Omnidirectional Antenna

1710-2690MHz Fiberglass Omnidirectional Antenna

AMXF-1727-3 Electrical Specifications
Frequency range(MHz)	1710～2690
Gain(dBi)	3
Half-power beam width(°)	H:360 V:60
VSWR	≤2.0
Input Impedance(Ω)	50
Polarization	Vertical
Maximum input power(W)	100
Lightning protection	DC Ground
Input connector type	N male
Mechanical Specifications
Dimensions (mm)	Φ20*180
Antenna weight(kg)	0.20
Operating temperature(°c)	-40～60
Rated Wind Velocity(m/s)	60
Radome color	Gray
Mounting way	Pole-holding
Mounting hardware(mm)	￠35-￠50

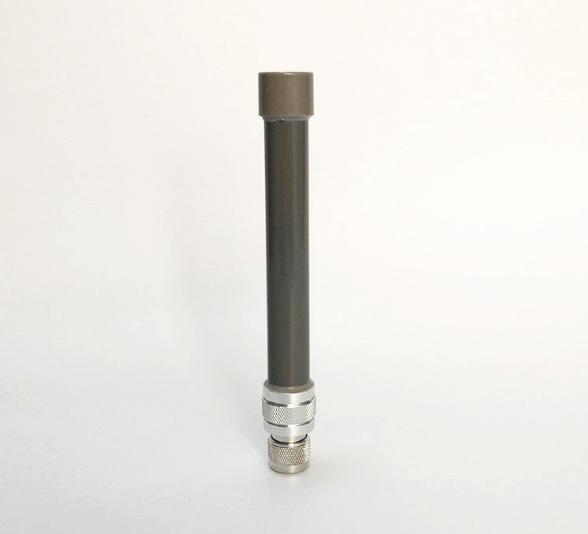

AMEISON manufacturer 4g Outdoor Antenna 1710-2690MHz 3dbi N Male Waterproof FRP Omnidirectional Antenna Images
