AMEISON 806-2700MHz Omnidirectional Fiberglass Antenna High gain For CDMA/GSM/PCS/3G/WLAN/LTE system

Product Categories

Shenzhen AMEISON Communication Equipment Co.,Ltd.

Contact Now

Name: AMEISON 8062700MHz Omnidirectional Fiberglass Antenna High gain For CDMAGSMPCS3GWLANLTE system
Brand: AMEISON
Price: 1 USD

Brand Name : AMEISON

Model Number : AMXF-8027-3

Certification : ISO 9001: 2008

Place of Origin : China

MOQ : 100

Price : EXW Price

Payment Terms : TT,Paypal,Western Union

Supply Ability : 50,000 Pieces per Month

Delivery Time : 10-20 working days

Packaging Details : PP bag /inner box/master carton or customized

Frequency range（MHz） : 806-960 / 1710-2700

Bandwidth（MHz） : 154 / 990

Gain（dBi） : 2/3

VSWR : ≤1.5

Polarization : Vertical

Lightning protection : DC Ground

Input connector type : SMA Male or Requested

Mounting way : magnetic mounting

Contact Now

806-2700MHz Omnidirectional Fiberglass Antenna For CDMA/GSM/PCS/3G/WLAN/LTE system

Feature:

Exquisite appearance

Good impact resistance, waterproofing and anticorrosion ability

Full day working

Optimized dimension

Low standing wave, strong anti-interference ability

Application:

CDMA/GSM/PCS/3G/WLAN system

Point-to-multipoint system

AMXF-8027-3 Electrical Specifications
Frequency range(MHz)	806-960 / 1710-2700
Bandwidth(MHz)	154 / 990
Gain(dBi)	2/3
Half-power beam width(°)	H:360 V:55/65
VSWR	≤1.5
Input Impedance(Ω)	50
Polarization	Vertical
Maximum input power(W)	100
Lightning protection	DC Ground
Input connector type	SMA Male or Requested
Mechanical Specifications
Dimensions (mm)	Φ60*80
Antenna weight(kg)	0.6
Operating temperature(°c)	-40～60
Rated Wind Velocity(m/s)	60
Radome color	Gray
Mounting way	Pole-holding
Mounting hardware(mm)	￠35-￠50

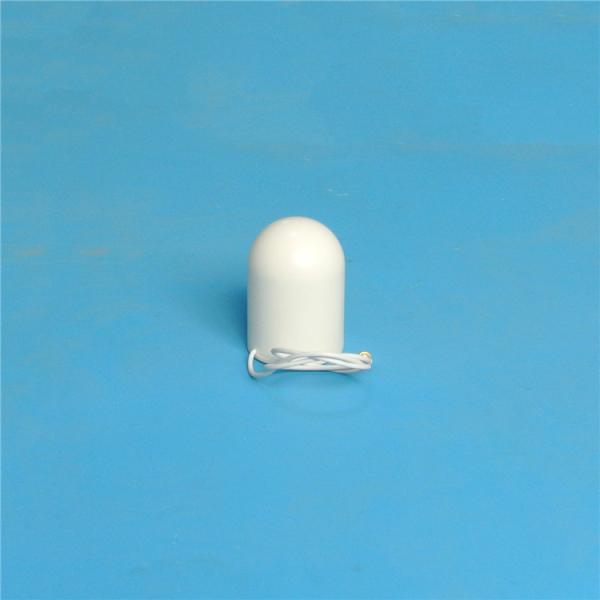

AMEISON 806-2700MHz Omnidirectional Fiberglass Antenna High gain For CDMA/GSM/PCS/3G/WLAN/LTE system Images
