1710 - 2700 MHz 5dbi 3G 4G LTE WLAN Omni directional Antenna

Product Categories

Shenzhen AMEISON Communication Equipment Co.,Ltd.

Contact Now

Name: 1710 2700 MHz 5dbi 3G 4G LTE WLAN Omni directional Antenna
Brand: AMEISON
Price: 1 USD

Brand Name : AMEISON

Model Number : AMXF-1727-5

Certification : ISO 9001: 2008

Place of Origin : China

MOQ : 100

Price : EXW Price

Payment Terms : TT,Paypal,Western Union

Supply Ability : 50,000 Pieces per Month

Delivery Time : 10-20 working days

Packaging Details : PP bag /inner box/master carton or others

Frequency range（MHz） : 1710-2700

Bandwidth（MHz） : 990

Gain（dBi） : 5

VSWR : ≤1.5

Polarization : Vertical

Lightning protection : DC Ground

Input connector type : N female

Mounting way : Pole-holding

Contact Now

1710 - 2700 MHz 5dbi 3G 4G LTE WLAN Omni directional Antenna

Feature:

Exquisite appearance

Optimized dimension

Full day working

Wide frequency band, low standing wave, strong anti-interference ability

Application:

PCS/ 3G/ WLAN/ 4G/ LTE system

Vehicle mobile communication device

AMXF-1727-3 Electrical Specifications
Frequency range(MHz)	1710～2700
Bandwidth(MHz)	990
Gain(dBi)	5
Half-power beam width(°)	H:360 V:55
VSWR	≤1.5
Input Impedance(Ω)	50
Polarization	Vertical, Linear
Maximum input power(W)	50
Lightning protection	DC Ground
Input connector type	N female
Mechanical Specifications
Dimensions(mm)	Φ60*230
Antenna weight(Kg)	0.05
Operating temperature(°c)	-40～60
Radome material	ABS
Radome color	White or customized
Waterproof Standard	IP65/ IP67
Mounting hardware(mm)	￠35 - ￠50
Mounting way	Pole Mount

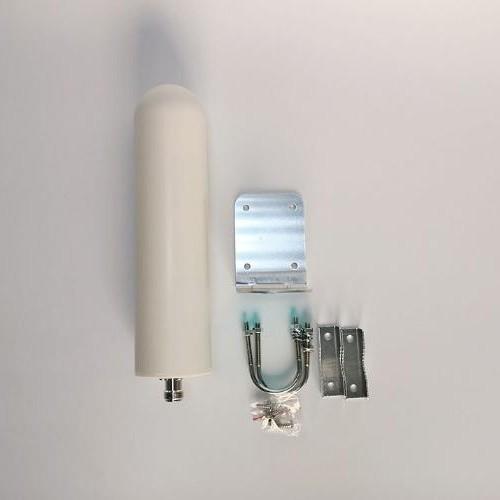

1710 - 2700 MHz 5dbi 3G 4G LTE WLAN Omni directional Antenna Images
