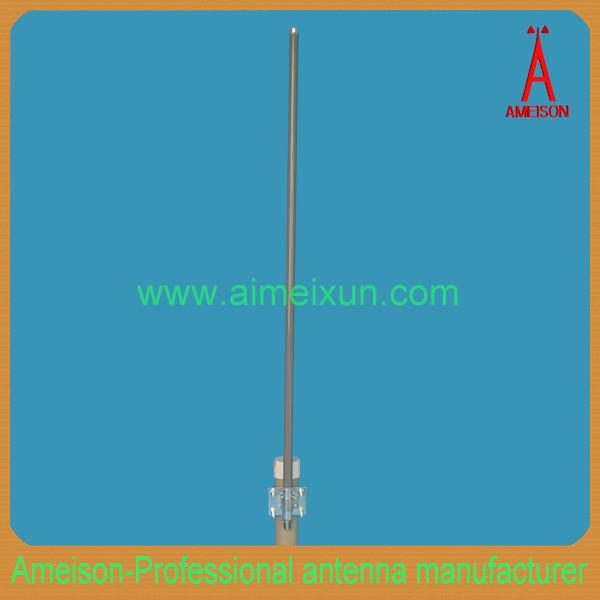

3.5GHz 12dBi WIMAX UMTS fiberglass antenna

Product Categories

Shenzhen AMEISON Communication Equipment Co.,Ltd.

Contact Now

Name: 35GHz 12dBi WIMAX UMTS fiberglass antenna
Brand: AMEISON
Price: 1 USD

Place of Origin : China

Brand Name : AMEISON

Model Number : AMXF-3500-12

Certification : ISO 9001: 2008

Price : EXW Price

Packaging Details : PP bag /inner box/master carton or customized

Delivery Time : 10-20 working days

Payment Terms : TT,Paypal,Western Union

Supply Ability : 50,000 Pieces per Month

MOQ : 100

Frequency range（MHz） : 3400～3600

Gain（dBi） : 12

VSWR : ≤1.5

Polarization : Vertical

Lightning protection : DC Ground

Input connector type : N Female or Requested

Mounting way : Pole-holding

Contact Now

UMTS antenna:

3.5 GHz WIMAX System

Repeater & Base station system

Strong supply capacity

Direct factory product

Good appearance

Durable, corrosion resistance

Full day for working ,waterproof

Optimized dimension

High Gain, Lower VSWR,

Strongly Anti-interference

Application:

Point to Multipoint system;

Wireless data 3.5GHz transmission system.

AMXF-3500-12 Electrical Specifications
Frequency range(MHz)	3400～3600
Bandwidth(MHz)	200
Gain(dBi)	12
Half-power beam width(°)	H:360 V:6
VSWR	≤1.5
Input Impedance(Ω)	50
Polarization	Vertical
Maximum input power(W)	100
Lightning protection	DC Ground
Input connector type	N Female or Requested
Mechanical Specifications
Dimensions (mm)	Φ20*830
Antenna weight(kg)	0.4
Operating temperature(°c)	-40～60
Rated Wind Velocity(m/s)	60
Radome color	Gray
Mounting way	Pole-holding
Mounting hardware(mm)	￠35-￠50
